STARTECH Add Flexibility to Your Rack by Expanding or Reducing the Equipment Mounting Dep

The StarTech.com RDA1U Rail Depth Adapter Kit is a 1U rack extender designed for server racks, allowing for adjustment of equipment mounting depth by up to four inches (10 cm). This adapter kit addresses common issues where IT hardware is either too long or too short for existing rack depths, enabling consolidation of diverse equipment into a single rack. The kit also facilitates improved cable management by allowing equipment to be mounted 4 inches in from the rails, which can minimize cable strain and improve access for high-density cabling scenarios involving patch panels, PDUs, or network switches. Constructed from steel, this TAA compliant product supports network equipment and servers.
General InformationManufacturerStarTech.comManufacturer Part NumberRDA1UManufacturer Website Addresshttp://www.startech.comBrand NameStarTech.comProduct NameRail Depth Adapter Kit for Server Racks - 4 in. (10 cm) Rack Extender - 1UMount equipment that's too long, or too shortYou can use this adapter kit to mount equipment in your server rack that's up to four inches longer or shorter than the rack's mounting depth.Cable management flexibilityProduct TypeMounting Adapter KitProduct InformationDevice Supported:Maximum Load Capacity10 lbPhysical CharacteristicsProduct MaterialSteelHeight0.8"Width1.8"Length4"Weight (Approximate)0.23 lbMiscellaneousPackage Contents:Environmentally FriendlyYesCountry of OriginCanadaTAA CompliantYesWarrantyLimited Warranty2 YearThis depth adapter kit lets you extend or reduce the mounting depth of one rack unit (1U) in your server rack by up to four inches. If you're using the adapter kit in a two post installation the extenders can support a total weight load of 10 lbs. (4.5 kg). If you're using the adapter kit in a four post installation, the extenders can support a total weight load of 90 lbs. (40 kg), you can even use two sets of extender brackets in a four post installation and achieve the same weight capacity performance.
With this adapter kit, you can customize your server rack to support different mounting depths, so you have the freedom to mount equipment of different depths in the same rack. It's a cost-saving, hassle-free way to consolidate your equipment into a single rack, so you have one server rack to manage instead of two.
The depth adapter kit can also be used to help manage cables. You can mount equipment 4" in from the rails, to prevent cables from protruding from the rack. You can use the rail depth adapter to mount equipment that has high density cabling, such as patch panels, PDUs or network switches, to minimize the effects of cable strain and provide easier access to the cables.
• Marketing Information:
• This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
• The RDA1U is backed by a 2-year warranty and free lifetime technical support.
• Network Equipment
• Server
• Features:
• Flexible
• Cable Management

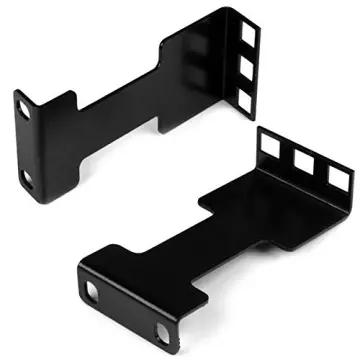

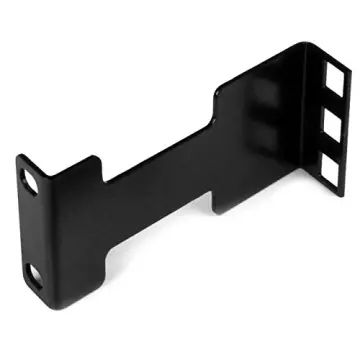

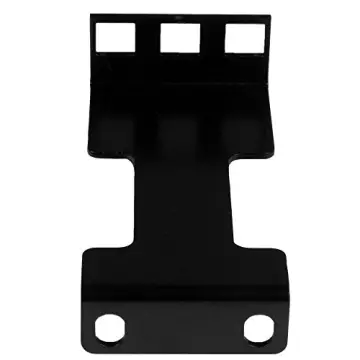

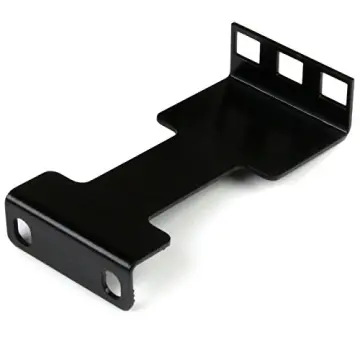

• 2 x Depth-adapter Brackets
• 4 x 10-32 x 5/8 Screws
• 4 x 10-32 Cage Nuts
• 1 x Instruction Manual
• Environmental Certification:
• RoHS
• REACH

Condition: New
Brand: STARTECH
Part #: RDA1U
Quantity available: 1
