Cru Dataport Complete (Frame and Carrier) DX115 SATA 3
- condition
- New
- make / brand
- Cru Dataport
- model
- 6616-6500-0500

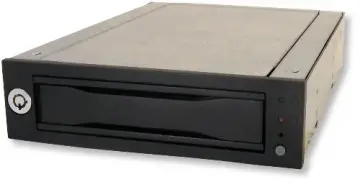

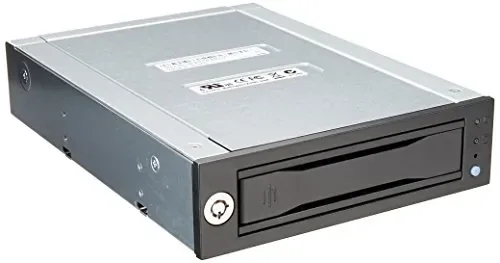

The CRU DATAPORT DX115 removable HDD frame and carrier system is designed for IT professionals requiring secure, hot-swappable drive access within server or workstation environments. This complete unit, part number 6616-6500-0500, supports both 2.5-inch and 3.5-inch SATA and SAS drives, including SATA SSDs, with transfer rates up to 6 Gb/s. It features a single bay for drive integration, utilizing a cable-less connection and alignment pins for reliable installation. The system incorporates soft start circuitry to enhance data integrity and includes a cooling fan, along with Power, drive activity, and fan failure LEDs for operational status monitoring. Constructed from rugged stainless steel, it offers durability suitable for frequent drive insertions, rated up to 30,000 cycles.
SAS frames compatible with SATA drive carriersPower, drive activity, and fan failure LEDsCable-less drive connectionConnector alignment pinsMounting hardwareSoft start circuitry increases data integrityFast transfer ratesRugged stainless steel constructionInterface Types and Speeds SATA/SAS: Up to 6 Gb/sSupported Drive Types 2.5"/3.5" SATA drives SATA SSDs (solid state drives) 2.5"/3.5" SAS drivesInsertion Rating Up to 30,000 carrier insertionsTorque 2.5" hard drives, M3 screws: 4" lb (maximum)Connectors SAS/SATA PowerNumber of Bays 1 Carrier Handle Yes Key Lock Yes Cooling Fan YesSwitch Fan error LED disable switchInterface Types and Speeds SATA/SAS: Up to 6 Gb/s* Supported Drive Types 2.5"/3.5" SATA drives SATA SSDs (solid state drives) 2.5"/3.5" SAS drives Insertion Rating Up to 30,000 carrier insertions Torque 2.5" hard drives, M3 screws: 4" lb (maximum) Connectors SAS/SATA Power Number of Bays 1 Carrier Handle Yes Key Lock Yes Cooling Fan Yes Switch Fan error LED disable switch LED Indicators LED: Drive Ready/Error Color: Blue/Red Flashing Blue: Drive is inserted and powering up Solid Blue: Drive is powered on and ready for access Flashing Red and Blue: Fan failure Solid Red: DC power failure LED: Drive Activity Color: Amber Flashing: Indicates when the host computer is accessing data on the drive.Construction Material Stainless steelOS Requirements Windows 8, 7, Vista, or XP Windows Server 2012, 2008, and 2003 product families Mac OS X 10.4.x or higher Linux distributions that support the connection type used Compliance EMI Standard: FCC Part 15 Class B, CE EMC Standard: EN55022, EN55024 C-Tick RoHS Dimensions 8.07 x 5.83 x 1.61" (205.00 x 148.00 x 41.00 mm) Weight 2.50 lb (1.13 kg)
Condition: New
Brand: Cru Dataport
Part #: 6616-6500-0500
Quantity available: 1
Sold by Aztek Computers (business seller). Pickup in Frisco, TX 75033 — shipping available, ask for a quote.
Call or text 469-574-0239, or use the message form on this page.
SAS frames compatible with SATA drive carriersPower, drive activity, and fan failure LEDsCable-less drive connectionConnector alignment pinsMounting hardwareSoft start circuitry increases data integrityFast transfer ratesRugged stainless steel constructionInterface Types and Speeds SATA/SAS: Up to 6 Gb/sSupported Drive Types 2.5"/3.5" SATA drives SATA SSDs (solid state drives) 2.5"/3.5" SAS drivesInsertion Rating Up to 30,000 carrier insertionsTorque 2.5" hard drives, M3 screws: 4" lb (maximum)Connectors SAS/SATA PowerNumber of Bays 1 Carrier Handle Yes Key Lock Yes Cooling Fan YesSwitch Fan error LED disable switchInterface Types and Speeds SATA/SAS: Up to 6 Gb/s* Supported Drive Types 2.5"/3.5" SATA drives SATA SSDs (solid state drives) 2.5"/3.5" SAS drives Insertion Rating Up to 30,000 carrier insertions Torque 2.5" hard drives, M3 screws: 4" lb (maximum) Connectors SAS/SATA Power Number of Bays 1 Carrier Handle Yes Key Lock Yes Cooling Fan Yes Switch Fan error LED disable switch LED Indicators LED: Drive Ready/Error Color: Blue/Red Flashing Blue: Drive is inserted and powering up Solid Blue: Drive is powered on and ready for access Flashing Red and Blue: Fan failure Solid Red: DC power failure LED: Drive Activity Color: Amber Flashing: Indicates when the host computer is accessing data on the drive.Construction Material Stainless steelOS Requirements Windows 8, 7, Vista, or XP Windows Server 2012, 2008, and 2003 product families Mac OS X 10.4.x or higher Linux distributions that support the connection type used Compliance EMI Standard: FCC Part 15 Class B, CE EMC Standard: EN55022, EN55024 C-Tick RoHS Dimensions 8.07 x 5.83 x 1.61" (205.00 x 148.00 x 41.00 mm) Weight 2.50 lb (1.13 kg)
Condition: New
Brand: Cru Dataport
Part #: 6616-6500-0500
Quantity available: 1
Sold by Aztek Computers (business seller). Pickup in Frisco, TX 75033 — shipping available, ask for a quote.
Call or text 469-574-0239, or use the message form on this page.
