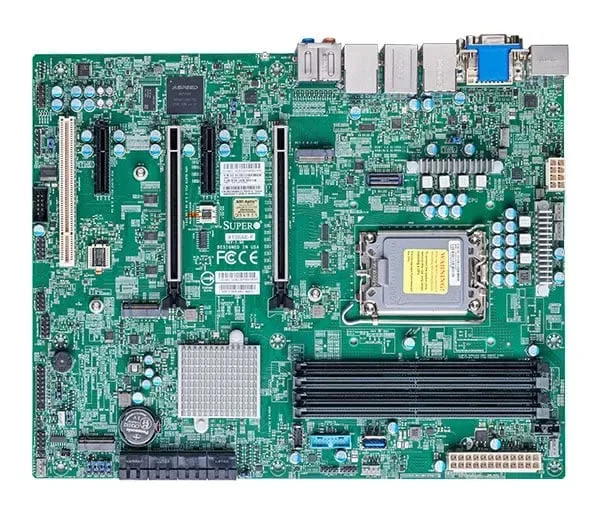

Supermicro X13SAE-F Motherboard ATX LGA1700 for W680
- condition
- New
- make / brand
- Supermicro
- model
- MBD-X13SAE-F-B
The MBD-X13SAE-F-B is an ATX motherboard designed for high-performance computing. It supports 12th, 13th, and 14th Generation Intel Core i3/i5/i7/i9 processors with a single LGA-1700 socket, up to 125W TDP. The board features an Intel W680 chipset and four DIMM slots, supporting up to 128GB of Unbuffered ECC/non-ECC UDIMM DDR5-4400MT/s memory. Expansion options include two PCIe 5.0 x16 slots (configurable as 16/NA or 8/8), two PCIe 3.0 x4 slots, and one 5V PCI 32bit slot. Connectivity includes a single LAN with Intel Ethernet i225V, a single LAN with Intel PHY I219LM controller for AMT/vPro, and a dedicated IPMI LAN Port. Video outputs include one DP 1.4a, one HDMI 2.0b, one VGA, and one DVI-D.
• Processor Socket: LGA 1700
• Compatible Processors: 12th/13th/14th Generation Intel Core i3/i5/i7/i9 Processors
• Max TDP: 125W
• Chipset Type: Intel W680
• RAM Memory Technology: DDR5
• Memory Clock Speed: 4400 MHz
• Maximum Memory Supported: 128 GB Unbuffered ECC/non-ECC UDIMM
• Memory Slots Available: 4
• PCIe 5.0 x16 Slots: 2 (16/NA or 8/8)
• PCIe 3.0 x4 Slots: 2
• PCI 32bit Slots: 1 (5V)
• M.2 Interface: 3 PCIe 4.0 x4 (RAID 0, 1, 5)
• M.2 Form Factor: 2280
• M.2 Key: M-Key
• HDMI Ports: 1 (HDMI 2.0b)
• DisplayPort: 1 (DP 1.4a)
• VGA Ports: 1
• DVI-D Ports: 1
• IPMI Support: Yes
• Platform: Windows
• Product Dimensions: 40.64 x 30.48 x 12.7 cm
• Item Weight: 1.34 Kilograms
Condition: New
Brand: Supermicro
Part #: MBD-X13SAE-F-B
Quantity available: 1
Sold by Aztek Computers (business seller). Pickup in Frisco, TX 75033 — shipping available, ask for a quote.
Call or text 469-574-0239, or use the message form on this page.
• Processor Socket: LGA 1700
• Compatible Processors: 12th/13th/14th Generation Intel Core i3/i5/i7/i9 Processors
• Max TDP: 125W
• Chipset Type: Intel W680
• RAM Memory Technology: DDR5
• Memory Clock Speed: 4400 MHz
• Maximum Memory Supported: 128 GB Unbuffered ECC/non-ECC UDIMM
• Memory Slots Available: 4
• PCIe 5.0 x16 Slots: 2 (16/NA or 8/8)
• PCIe 3.0 x4 Slots: 2
• PCI 32bit Slots: 1 (5V)
• M.2 Interface: 3 PCIe 4.0 x4 (RAID 0, 1, 5)
• M.2 Form Factor: 2280
• M.2 Key: M-Key
• HDMI Ports: 1 (HDMI 2.0b)
• DisplayPort: 1 (DP 1.4a)
• VGA Ports: 1
• DVI-D Ports: 1
• IPMI Support: Yes
• Platform: Windows
• Product Dimensions: 40.64 x 30.48 x 12.7 cm
• Item Weight: 1.34 Kilograms
Condition: New
Brand: Supermicro
Part #: MBD-X13SAE-F-B
Quantity available: 1
Sold by Aztek Computers (business seller). Pickup in Frisco, TX 75033 — shipping available, ask for a quote.
Call or text 469-574-0239, or use the message form on this page.
